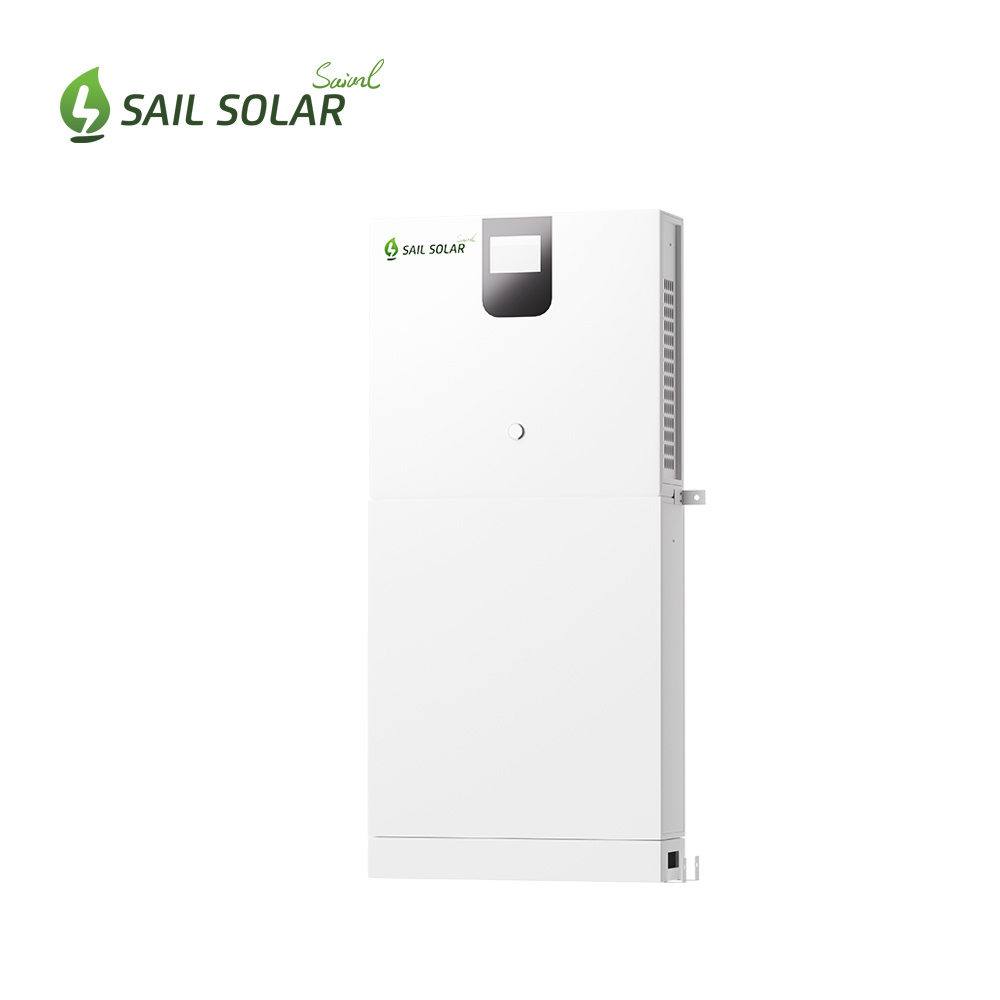

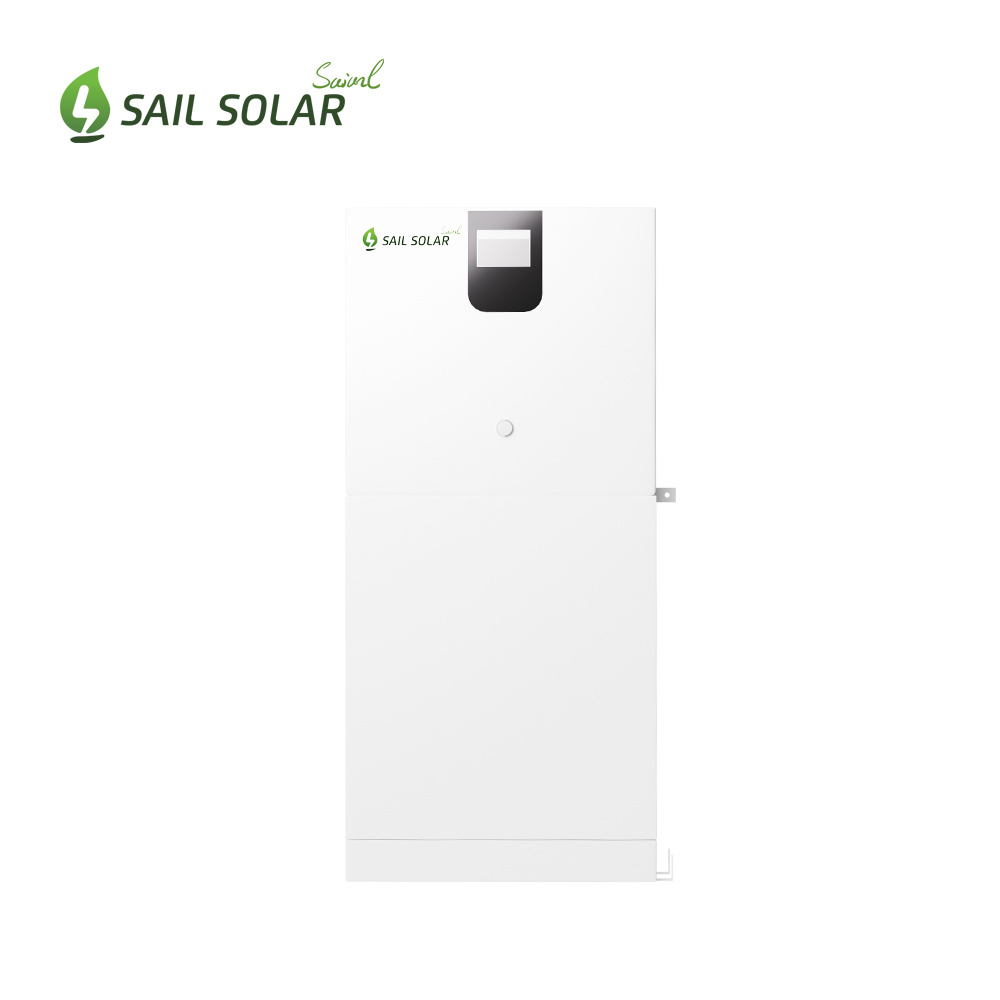

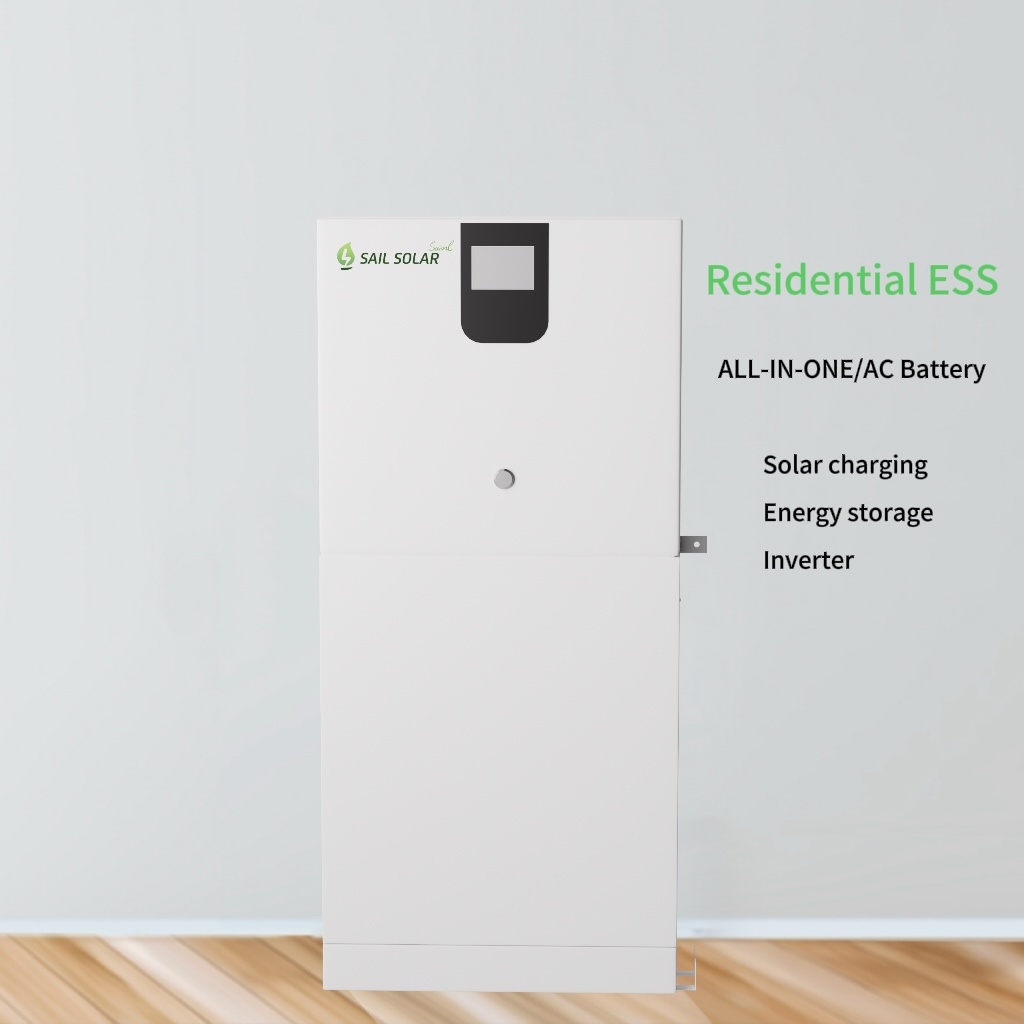

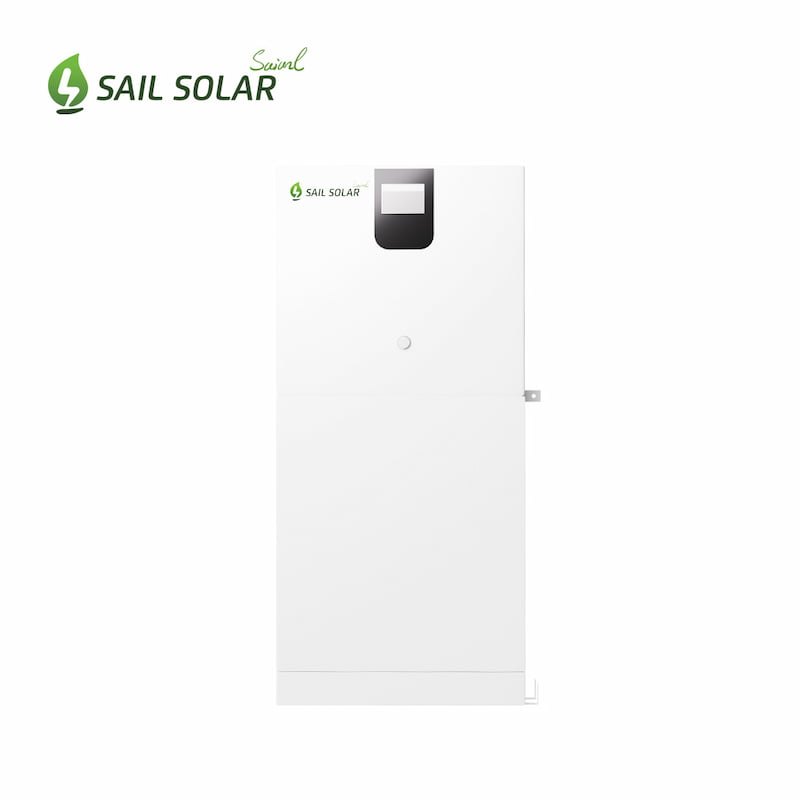

All In One ESS Solution 5KW Inverter 5KWH 51.2V 100ah Lithium Battery Home Energy Storage System
MPPT Voltage Range :
120V~450VAC Maximum Output Current :
30AHumidity :
5%~85%Frequency :
50HzMaximum Output Current :
30ACycle Life(+25°C 0.5C) :
DOD 80%,10+ years design lifeProtocol (optional) :
RS232/RS485/CAN/BLUETOOTH/WIFISolar Charge Type :
MPPTRated Output Power :
5000WCommunication Port :
CAN, RS485Protection Class :
IP20Brand :
Sail SolarType :
All-in-oneSAIL SOLAR All in One Home Use Solar Power Energy Storage System is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
|
MODEL
|
AIO-5.12 |
AIO-10.24 |
AIO-15.36 |
AIO-20.48 |
|
Battery Type
|
LiFePO4 battery
|
|||
| No.of Moudle |
1 |
2 |
3 |
4 |
| Normal Capacity(25°c,0.2C) |
5.12kwh |
10.24kwh |
15.36kwh |
20.48kwh |
| Normal Voltage(dc) |
51.2V |
51.2V |
51.2V |
51.2V |
| Voltage Window(dc) |
44.8~57.6V
|
|||
| Size(W/D/H) |
1190x600x184mm
|
1800x600x184mm
|
1800x600x184mm
690x600x184mm
|
1800x600x184mm
1300x600x184mm
|
| Weight(Nw Kg) |
80 |
130 |
190 |
250 |
|
Normal charge/discharge current
|
50A |
50A |
50A |
50A |
| Max.charge/discharge current |
100A |
100A |
100A |
100A |
| Cycle Life(+25°C 0.5C) |
DOD 80%,10+ years design life
|
|||
| Storage Temperature |
-20℃~+60°C
|
|||
| Safety Standard |
CE/IEC/UL/UN38.3/MSDS
|
|||
|
Protection Grade
|
IP20
|
|||
|
Protocol (optional)
|
RS232/RS485/CAN/BLUETOOTH/WIFI
|
|||
|
Protection
|
Overchange protection、Overdischange protection、 Overcurrent protection
Shortcircuit protection、Overtemperature protection
|
|||
| Working Temperature |
Charge:0~45°c; Discharge:-10~45°C
|
|||
| Humidity |
5%~85%
|
|||
|
PV Charge
|
|
|||
| Solar Charge Type |
MPPT
|
|||
| Maximum Output Power |
5000W
|
|||
| PV Charging Current Range |
0~80A
|
|||
| PV Operating Voltage Range |
120~500V
|
|||
| MPPT Voltage Range |
120~450V
|
|||
| AC Charge |
|
|||
| Maximum Charge Power |
3150W
|
|||
| AC Charging Current Range |
0~60A
|
|||
| Rated input Voltage |
220/230Vac
|
|||
| Input Voltage Range |
90~280Vac
|
|||
|
AC Output
|
|
|||
| Rated Output Power |
5000W
|
|||
| Maximum Output Current |
30A
|
|||
| Frequency |
50Hz
|
|||
| Overload Current |
35A
|
|||
| Battery Inverter Output |
|
|||
|
Rated Output Power
|
5000W
|
|||
| Maximum Peak Power |
10KVA
|
|||
| Power Factor |
1 |
|||
| Rated Output Voltage (Vac) |
230Vac
|
|||
| Frequency |
50Hz
|
|||
| Auto Switch Period |
<15ms
|
|||
| THD |
<3%
|
|||
Product Description
 |
Our energy storage system features a modular and all-in-one design, allowing seamless integration and flexibility. The expandable battery module design enables easy capacity upgrades to meet your growing energy needs. Engineered for indoor installation, it offers a compact and aesthetic solution for various settings. This system supports single-phase Euro or U.S. standard configurations, ensuring compatibility with multiple grid voltage standards, making it suitable for diverse regions and applications. With hybrid working modes such as solar-first mode, utility-first mode, solar-utility-battery, and solar-battery-utility, it delivers optimal performance by adapting to different energy scenarios. Designed with convenience in mind, it is easy to install and maintain and comes with iOS/Android app monitoring, giving you real-time control and insights into your energy usage. The system incorporates a comprehensive protection and warning system, spanning both software and hardware, to ensure safe and reliable operation under various conditions. It’s a robust and user-friendly solution for achieving energy efficiency and independence. |
|

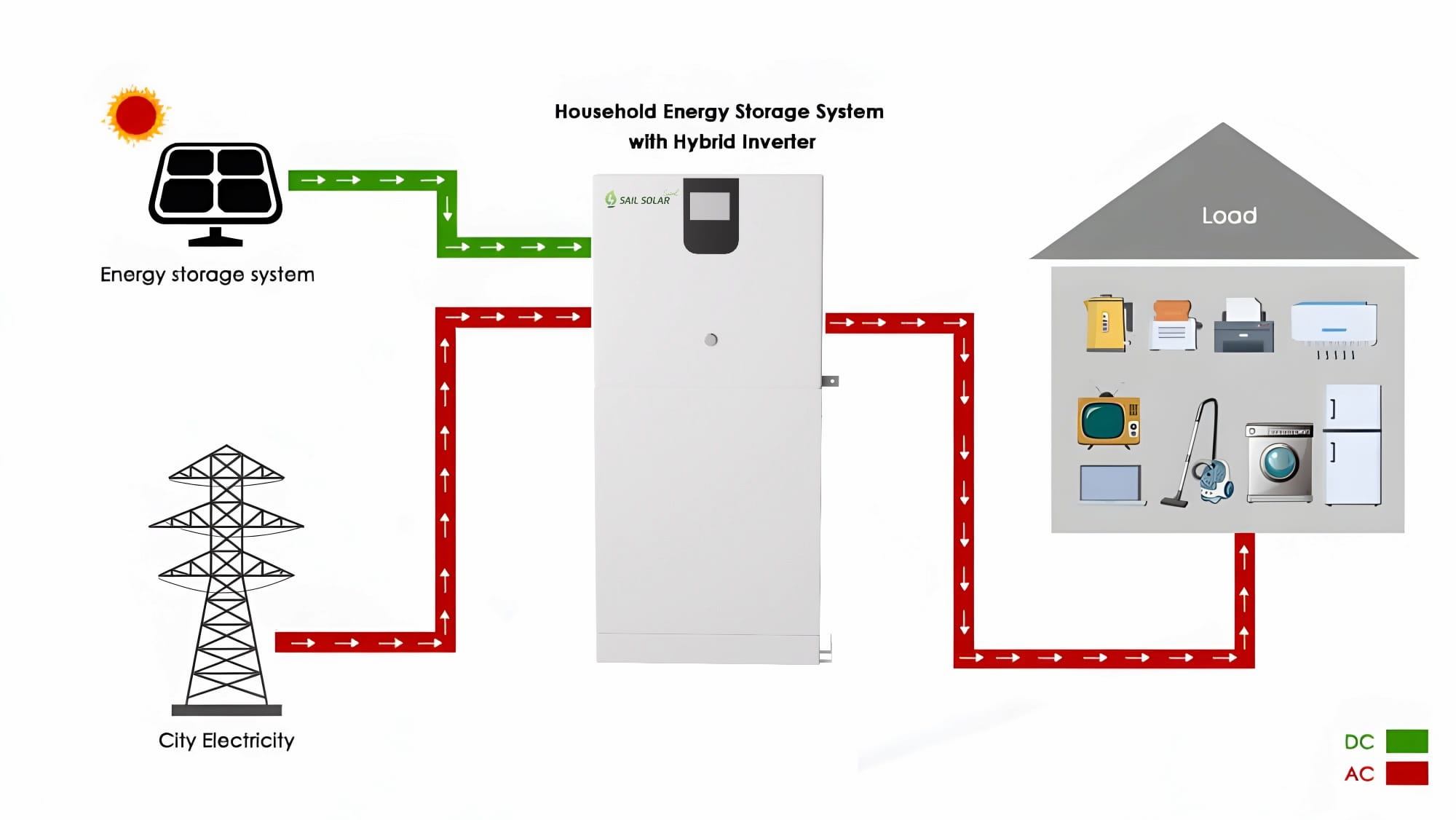

This innovative energy storage system integrates a 5kW three phase inverter and a 5.12kWh lithium battery, making it a versatile and reliable hybrid solution for home use. Designed to maximize energy efficiency, it allows solar energy to power your home during the day, while any surplus production is stored in the battery for nighttime use. With the added convenience of a smart monitoring system, you can track and manage energy usage in real-time via a dedicated mobile app. Featuring a stackable, all-in-one design, this system is highly adaptable for a range of applications. It is ideal for industrial solar energy storage as well as serving as a UPS backup power solution for offices and small enterprises. Whether for residential, commercial, or industrial purposes, this system delivers reliability, energy independence, and peace of mind, all while supporting a sustainable lifestyle. |
 |
Certificate
This all-in-one Energy Storage System (ESS) is designed to meet the highest international standards of quality, safety, and performance. It has obtained essential certifications, including TUV, SAA, CE, and UN38.3, ensuring compliance with rigorous global regulations. These certifications reflect the system’s exceptional reliability, safety during transportation and operation, and suitability for a wide range of applications.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
