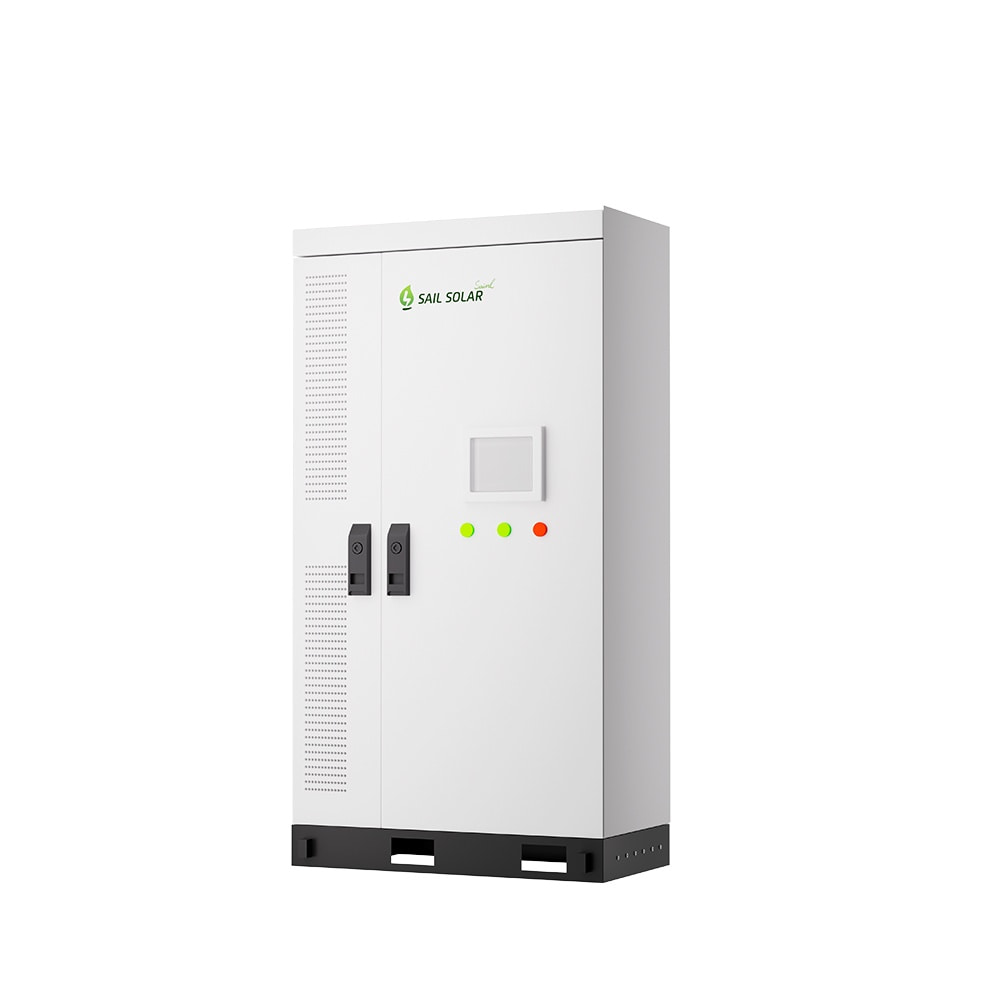

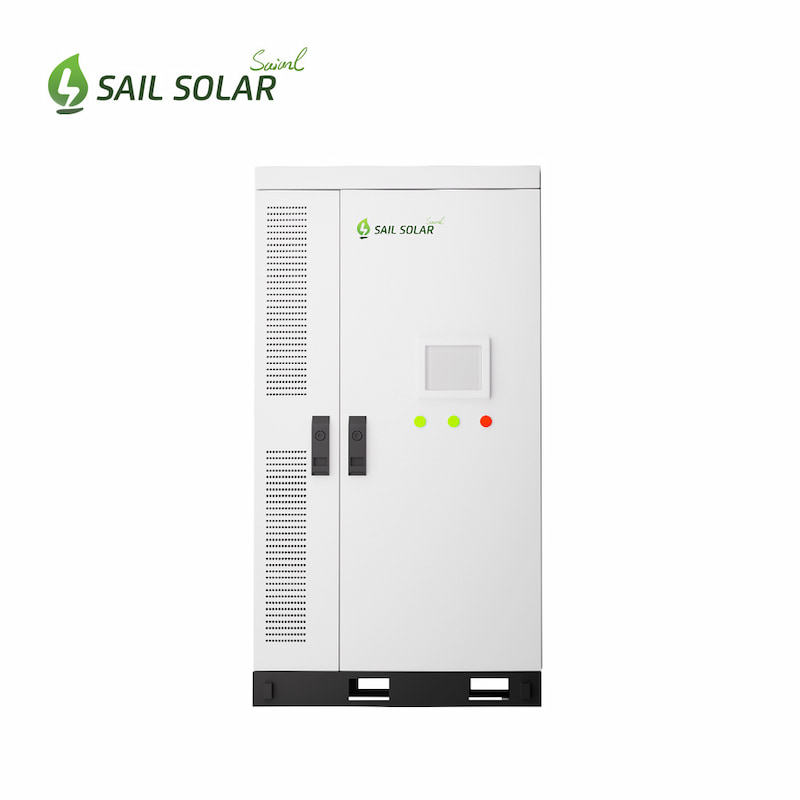

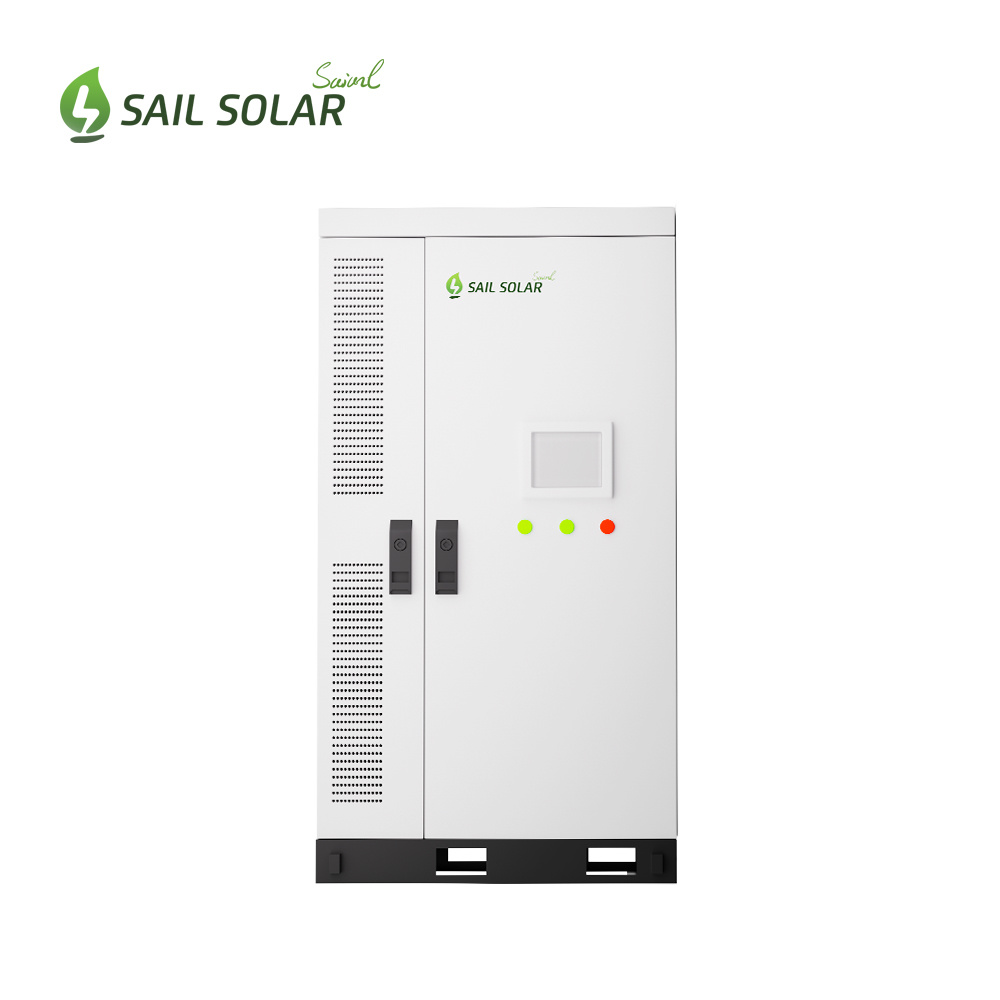

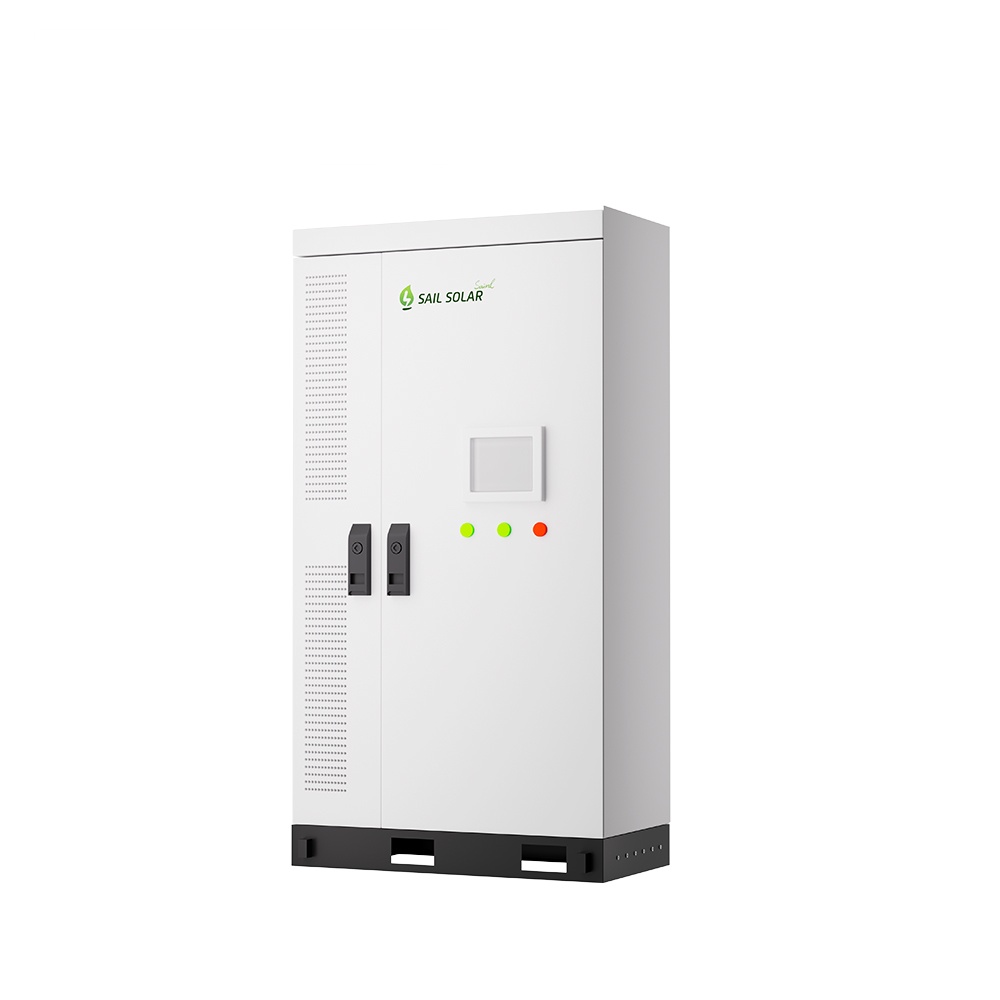

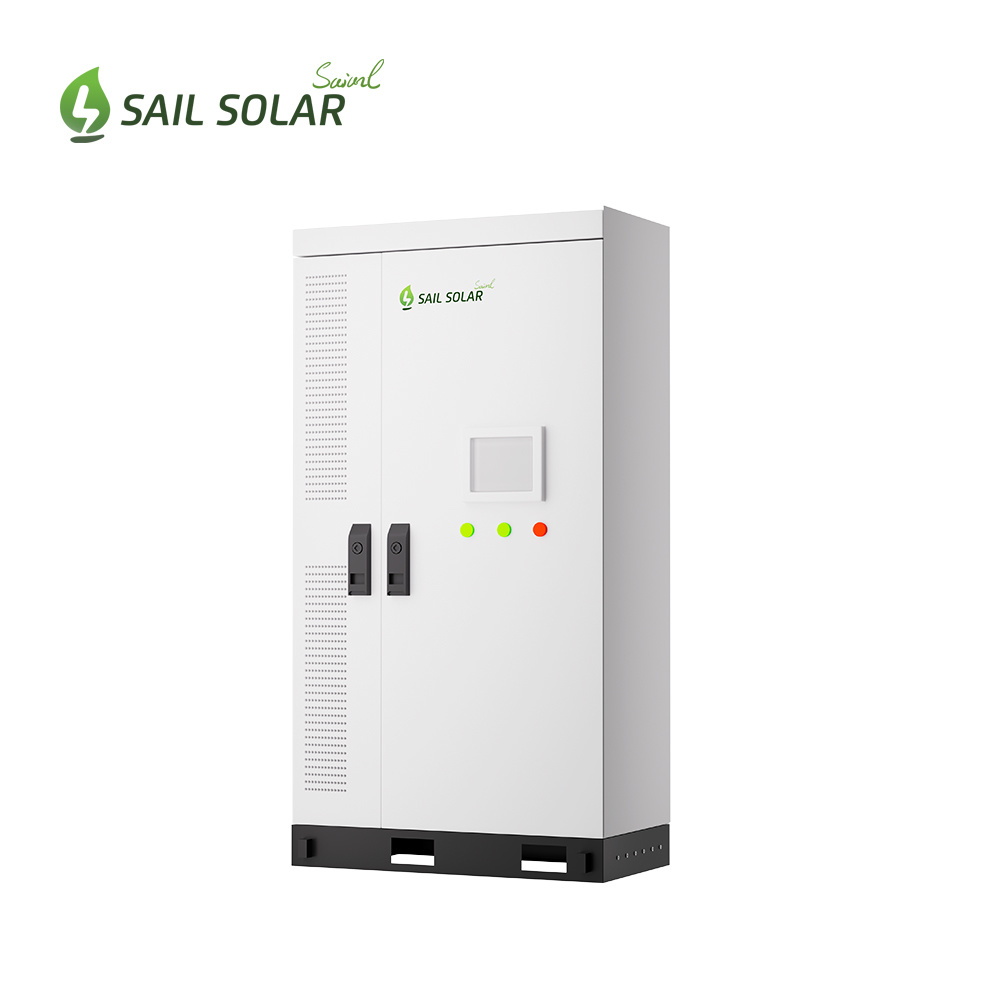

Sail Solar 100 Kw 200 Kwh Energy Storage System PV Battery Storage Solar Power Bess

Sail Solar 100 Kw 200 Kwh Energy Storage System PV Battery Storage Solar Power Bess

  • Weight :

    2500Kg
  • The depth of discharge :

    80%DOD
  • Size :

    1200*2350*1100mm
  • Operating temperature :

    -35℃~+55℃
  • Rated grid frequency :

    50Hz/60Hz
  • Battery Voltage Range :

    627~806V
  • Type of cooling :

    Type of cooling
  • Protocol(optional) :

    RS232/RS485/CAN/BLUETOOTH/WIFI
  • Safety and Certification :

    CE/IEC/UL/UN38.3/MSDS
  • Cycle Life :

    6000 cycles
  • Protection Class :

    IP55
  • Battery Type :

    Lithium Ion, LiFePO4
  • Place of Origin :

    China
  • Brand :

    Sail Solar

Elevate your energy storage capabilities with the Sail Solar 100 Kw 200 Kwh Energy Storage System PV Battery Storage Solar Power Bess, a testament to the quality bess solar battery energy storage system from China. This state-of-the-art system is designed to harness and store renewable energy efficiently, powered by high-performance Lithium Ion and LiFePO4 batteries. With a robust IP55 protection class and comprehensive safety certifications including CE/IEC/UL/UN38.3/MSDS, this system ensures reliable and safe operation.

The Sail Solar 100 Kw 200 Kwh Energy Storage System PV Battery Storage Solar Power Bess is designed for scalability, with a compact size of 120023501100mm and a weight of 2500Kg, fitting seamlessly into various environments. The quality bess solar battery energy storage system prices are competitive, offering an affordable investment in the future of renewable energy.

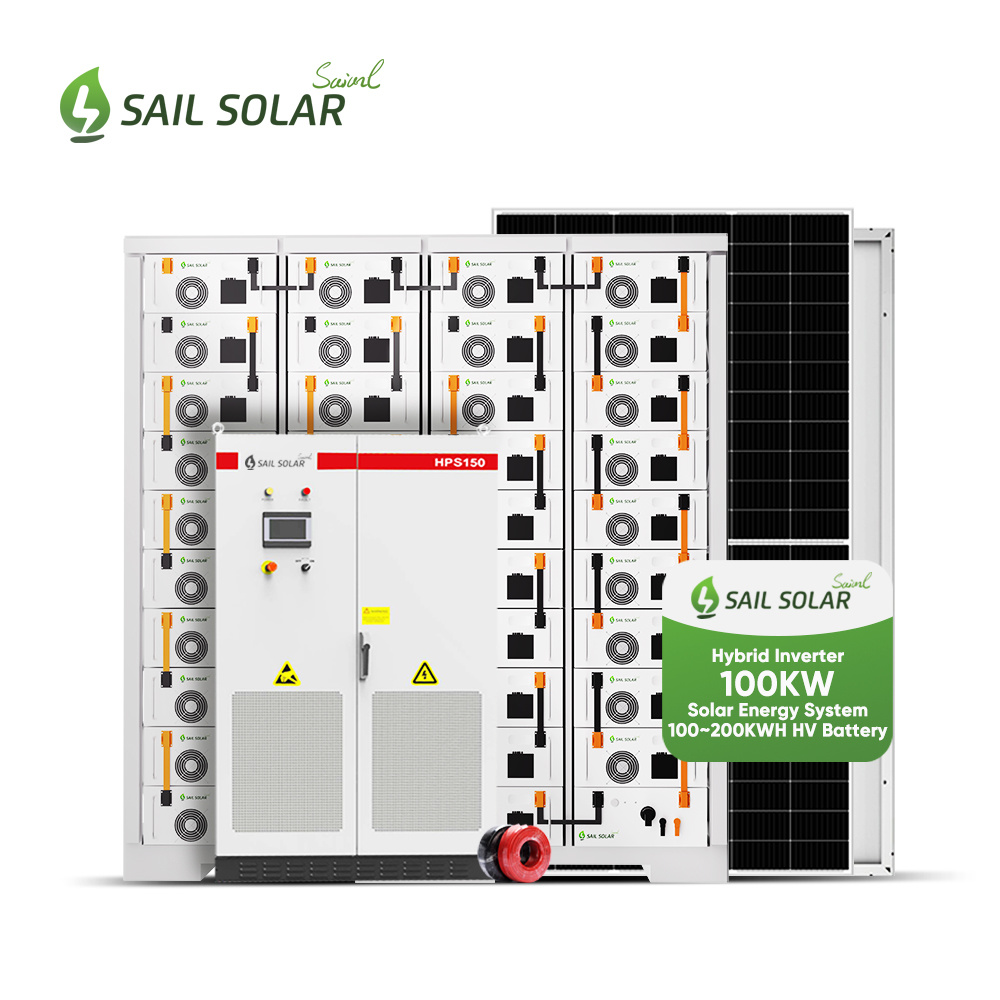

This commercial-scale energy solution combines a 100kW solar power generation system with a 200kWh battery energy storage system (BESS), designed to deliver reliable, sustainable, and cost-effective energy for businesses and industrial facilities. The system is particularly suited for large-scale commercial operations, where energy efficiency, cost savings, and grid stability are of utmost importance.

quality bess solar battery energy storage system from China

Specification

MODEL

BESS-100KW/200KWH

Battery Type
LiFePo4
Battery Pack Configuration

14.336KWH/1P16S

Battery System Configuration

200KWH/1P224S

Battery Voltage Range

627~806V

Number of Temperature Measurements

84

AC rated power

100KW

AC maximum power

110KW

AC current distortion rate

<3%

DC component

<0.5%lpn

Grid voltage range

380/400(-15%~15%)Vac

Power factor
-1~+1
Rated grid frequency
50Hz/60Hz
Maximum system efficiency

91%

Charge/discharge ratio

≤0.5C

The depth of discharge
80%DOD
Cycles
6000
Protocol(optional)
RS232/RS485/CAN/BLUETOOTH/WIFI
Protection Grade
IP55
Type of cooling

Air conditioning air cooling

Operating temperature
-35℃~+55℃
Relative humidity

5~95%RH, No condensation

Noise

<70dB

Altitude

<2000m

Size

1200*2350*1100mm

Fire protection system

Aerosol+Pack-level immersion+Active warning

Weight

2500Kg

Safety and Certification

CE/IEC/UL/UN38.3/MSDS

Product Description

quality bess solar battery energy storage system from China

Our innovative solution is specifically designed to address the challenges of electricity-deprived remote areas, such as isolated islands, sparsely populated grazing lands, and other off-grid locations where traditional power infrastructure is difficult or impractical to establish. By providing a consistent and dependable power supply, we ensure that even the most underserved regions can access the energy they need to thrive.

Whether you aim to electrify rural communities, support agricultural operations, or power remote facilities, our solution delivers sustainable, cost-effective, and resilient electricity tailored to the unique demands of these challenging environments. Embrace this transformative technology to light up remote locations, empower local development, and pave the way for a cleaner, brighter, and more connected future.

Sail Solar BESS adeptly reduces peak energy consumption, effectively mitigating demand charges and optimizing cost management for commercial establishments.


Employ the BESS to efficiently manage and minimize peak energy usage during high-demand periods, contributing to significant cost reductions.

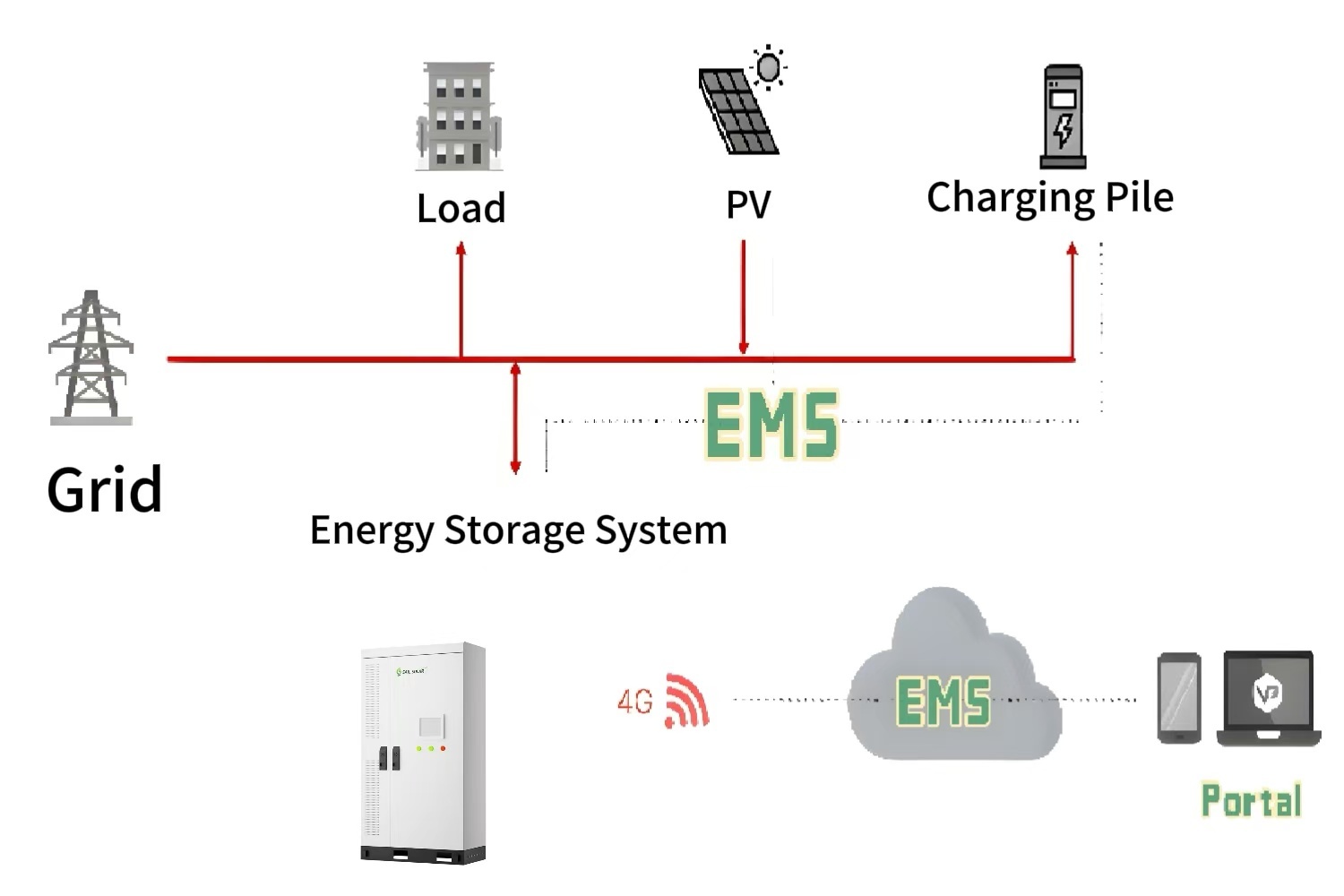

The BESS becomes a cornerstone of microgrid setups, offering extended energy autonomy and continuous power supply during grid disruptions or off-grid scenarios. With an extensive capacity, the ESS stores and dispatches larger quantities of renewable energy, promoting sustained clean energy utilization across commercial facilities.


Industries requiring significant energy reserves, such as data centers, manufacturing plants, and healthcare facilities, benefit from the ESS’s unwavering power supply.

quality bess solar battery energy storage system from China

Certificate

Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.

quality bess solar battery energy storage system from China



After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
