Sail Solar All In One ESS 3KW Inverter and 5KWH Lithium Battery Power Station Smart Home System
Frequency :
50HzMaximum Output Current :
30ACycle Life(+25°C 0.5C) :
DOD 80%,10+ years design lifeProtocol (optional) :
RS232/RS485/CAN/BLUETOOTH/WIFISolar Charge Type :
MPPTRated Output Power :
5000WCommunication Port :
CAN, RS485Protection Class :
IP20Type :

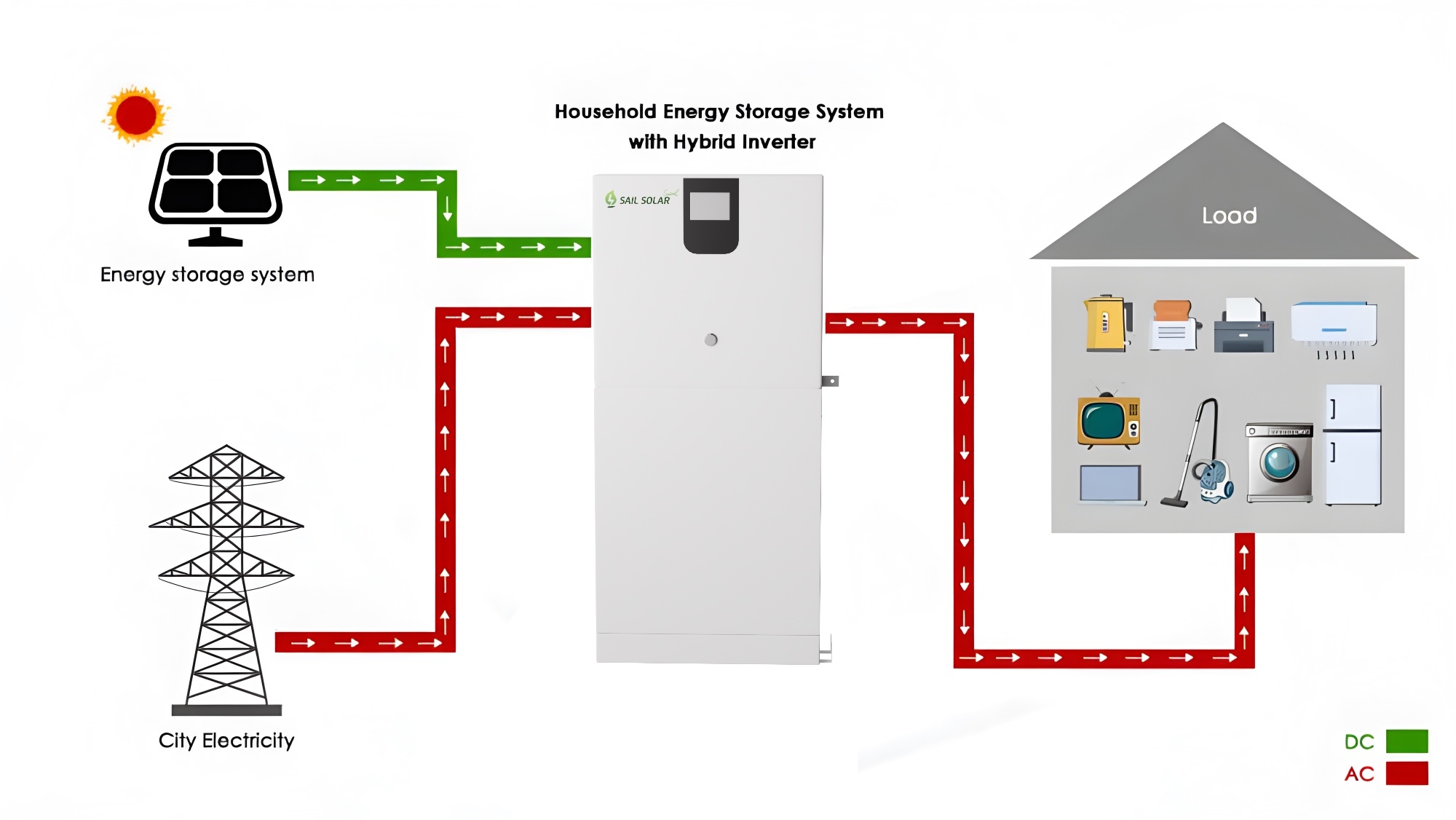

All-in-oneSAIL SOLAR All in One Home Use Solar Power Energy Storage System is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
MODEL
|
AIO-5.12 |
AIO-10.24 |
AIO-15.36 |
AIO-20.48 |
Battery Type
|
LiFePO4 battery
|
|||
No.of Moudle |
1 |
2 |
3 |
4 |
Normal Capacity(25°c,0.2C) |
5.12kwh |
10.24kwh |
15.36kwh |
20.48kwh |
Normal Voltage(dc) |
51.2V |
51.2V |
51.2V |
51.2V |
Voltage Window(dc) |
44.8~57.6V
|
|||
Size(W/D/H) |
1190x600x184mm
|
1800x600x184mm
|
1800x600x184mm
690x600x184mm
|
1800x600x184mm
1300x600x184mm
|
Weight(Nw Kg) |
80 |
130 |
190 |
250 |
Normal charge/discharge current
|
50A |
50A |
50A |
50A |
Max.charge/discharge current |
100A |
100A |
100A |
100A |
Cycle Life(+25°C 0.5C) |
DOD 80%,10+ years design life
|
|||
Storage Temperature |
-20℃~+60°C
|
|||
Safety Standard |
CE/IEC/UL/UN38.3/MSDS
|
|||
Protection Grade
|
IP20
|
|||
Protocol (optional)
|
RS232/RS485/CAN/BLUETOOTH/WIFI
|
|||
Protection
|
Overchange protection、Overdischange protection、 Overcurrent protection
Shortcircuit protection、Overtemperature protection
|
|||
Working Temperature |
Charge:0~45°c; Discharge:-10~45°C
|
|||
Humidity |
5%~85%
|
|||
PV Charge
|
|
|||
Solar Charge Type |
MPPT
|
|||
Maximum Output Power |
5000W
|
|||
PV Charging Current Range |
0~80A
|
|||
PV Operating Voltage Range |
120~500V
|
|||
MPPT Voltage Range |
120~450V
|
|||
AC Charge |
|
|||
Maximum Charge Power |
3150W
|
|||
AC Charging Current Range |
0~60A
|
|||
Rated input Voltage |
220/230Vac
|
|||
Input Voltage Range |
90~280Vac
|
|||
AC Output
|
|
|||
Rated Output Power |
5000W
|
|||
Maximum Output Current |
30A
|
|||
Frequency |
50Hz
|
|||
Overload Current |
35A
|
|||
Battery Inverter Output |
|
|||
Rated Output Power
|
5000W
|
|||
Maximum Peak Power |
10KVA
|
|||
Power Factor |
1 |
|||
Rated Output Voltage (Vac) |
230Vac
|
|||
Frequency |
50Hz
|
|||
Auto Switch Period |
<15ms
|
|||
THD |
<3%
|
Product Description
![]() |
This energy storage system is designed to excel in diverse working environments, offering exceptional adaptability and durability. Equipped with a high-quality LiFePO4 battery, it boasts a long service life of over 6000 cycles, ensuring reliable and sustained performance. Safety is a priority, with features such as a rugged metal shell that is both waterproof and explosion-proof, making it ideal for demanding conditions. Installation and setup are made incredibly user-friendly with its plug-and-play design, eliminating the hassle of tangled wires and removing the need for complex matching or debugging processes. The straightforward operation allows users to get started quickly, making this system accessible even to those without technical expertise. With a focus on safety, ease of use, and longevity, this system is a practical and efficient energy solution for both residential and industrial applications. |
Sail Solar’s All-in-One Energy Storage System offers a versatile and efficient solution for both residential and commercial energy needs. With flexible configuration options of 5.1kWh, 10.2kWh, 15.36kWh, and 20.4kWh, users can easily scale their energy storage to match specific requirements. This system is built to last, with a cycle life of over 10,000 cycles under lab conditions, ensuring long-term reliability and performance. Its high battery-to-grid conversion efficiency of up to 94% allows for optimal energy utilization, maximizing the value of every watt. Equipped with LiFePO4 battery cells, it provides enhanced safety and is free from cobalt and nickel, making it a more sustainable and eco-friendly choice. Whether for home or business, Sail Solar’s All-in-One Energy Storage System offers a comprehensive solution to help users optimize their energy structure, reduce electricity costs, and embrace a greener, more environmentally responsible approach to energy use. |
![]() |
Certificate
We focus on producing high-quality lithium batteries, adhering to rigorous manufacturing standards to ensure reliability, safety, and performance. Our products have been awarded various international certifications, including UN38.3, CE, IEC, UL, MSDS, and ISO, reflecting our commitment to meeting global safety and quality requirements. These certifications provide assurance that our lithium batteries are suitable for a wide range of applications and meet strict compliance guidelines. If you have any questions or specific needs regarding our products, please don’t hesitate to contact Sail Solar. We are here to help and provide the best energy solutions for your projects.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
